Meat Advanced Processing Equipment
Kıyma Makinaları
Ø72 Kıyma Makinası
-
Tamamen AISI 304 paslanmaz krom gövde, kafa, bilezik, helezon Yüksek verimlilik için helezon ve gövde boyutlarının mükemmel kombinasyonu
Sökülüp takılabilir yiv-seti sayesinde makinanın temizliği gayet kolaydır. (Opsiyonel)
Soğutma sistemindeki boru ve karlanma kamufle edilmiştir. Soğutucu makinanın arkasında monte edilmiştir. Soğutucu arızalandığı zaman makinadan bağımsız çalıştığından dolayı sökülüp takılabilir. (Opsiyonel)
Soğutucu ısı kontrol sistemi dijital olup kolayca ayarlanabilir
Rediktörlü sistem 1 adet paslanmaz ayna (İtalyan/Salvador) 1 adet çelik bıçak 1 adet polietilen tokmak Bütün modeller trifaze (sanayi elektriği) olarak imal edilir. İhtiyaca göre monofaze (ev elektriği) olarak imal edilebilir.
Makinalarımız 1 ayna ve 1 bıçakla çalışabilir.
Aynalar paslanmaz ve İtalya menşeili Salvador; bıçaklar çelik ve Alman menşeili L&W markadır. -

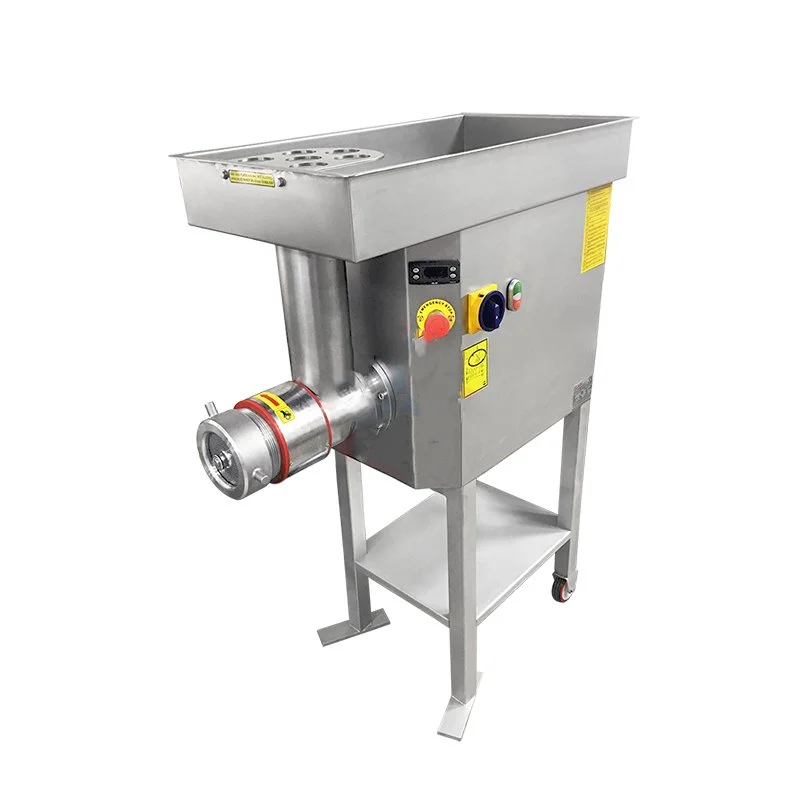

Ø98 Meat Grinder (Footed Model)
-
Entirely manufactured AISI 304 stainless chrome body, head, bracelet, auger
The perfect combination of auger and body dimensions for high efficiency
Thanks to the removable groove-set, the machine is easy to clean. (Optional)
The pipe and frost in the cooling system are hidden.
The cooler is dismantled behind the machine. It can be detached and attached as the machine works independently when the cooler fails.
Cooler temperature control system is digital and can be easily adjusted
Reducer system
1 Stainless mirror (Italian/Salvador)
1 Steel blade
1 polyethylene hammer
All models are manufactured as three-phase (Industrial Electricity). It can be manufactured as single phase (Home Electricity) according to the need.
Machines can work with just 1 plate and 1 blade.
Plates are made in İtaly (Salvador) and stainless, blades are stainless Steel and made in Germany (L&W).
-
Capacity 600 Kg / h.
Motor Power 3 kW.
Voltage 400 V / 50 Hz.
Plate Diameter 98 mm.
Cooler Optional
Groove (Cutting Block) Optional
Sinew Separator Optional
Foot Available
Weight 95 Kg.
Dimensions (L x W x H) 320 x 820 x 420 mm.
With Box Weight --- Kg.
Box Dimensions (L x W x H) - x - x - mm.

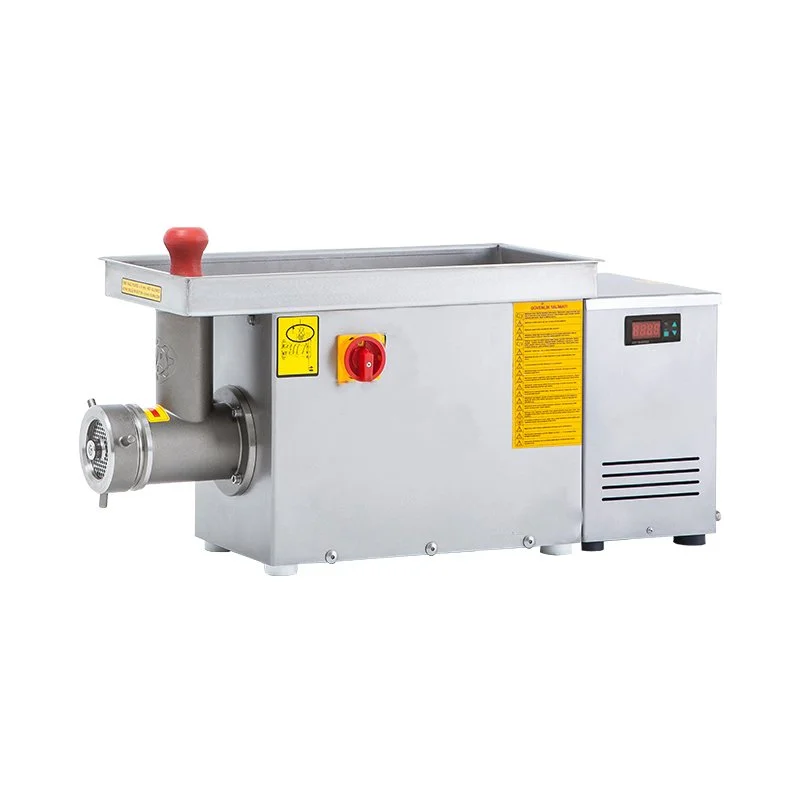

Ø72 Soğutuculu Kıyma Makinası
-
Entirely manufactured AISI 304 stainless chrome body, head, bracelet, auger
The perfect combination of auger and body dimensions for high efficiency
Thanks to the removable groove-set, the machine is easy to clean. (Optional)
The pipe and frost in the cooling system are hidden.
The cooler is dismantled behind the machine. It can be detached and attached as the machine works independently when the cooler fails.
Cooler temperature control system is digital and can be easily adjusted
Reducer system
1 Stainless mirror (Italian/Salvador)
1 Steel blade
1 polyethylene hammer
All models are manufactured as three-phase (Industrial Electricity). It can be manufactured as single phase (Home Electricity) according to the need.
Machines can work with just 1 plate and 1 blade.
Plates are made in İtaly (Salvador) and stainless, blades are stainless Steel and made in Germany (L&W).
-
Capacity 150 Kg / h.
Motor Power 0,55 kW.
Voltage 220 V.
Plate Diameter 72 mm.
Cooler Yes
Groove (Cutting Block) Demountable
Sinew Separator No
Foot No
Weight 40 Kg.
Dimensions (L x W x H) 220 x 860 x 322 mm.
With Box Weight 46 Kg.
Box Dimensions (L x W x H) 300 x 900 x 350 mm.
Ø130 Meat Grinder
-
Manufactured AISI 304 stainless chrome body, head, bracelet, auger
The perfect combination of auger and body dimensions for highefficiency
It has the ability to work with one plate, one blade or two plate, one blade; in the third option, three plates and two blades owner
Disassembled and camouflaged cooling system with digital thermostat (Optional)
You can easily separate the meat from the bone, nerve, etc. solid materials thanks to it's nerve separation feature (Optional)
-
Capacity 1000 Kg. / h.
Motor Power 4.5 kW.
Voltage 400 V / 50 Hz.
Plate Diameter 130 mm.
Cooler Optional
Groove (Cutting Block) Stationary
Sinew Separator Optional
Foot Optional
Weight 175 Kg.
Dimensions (L x W x H) 380x1095x510 mm.
With Box Weight --- Kg.
Box Dimensions (L x W x H) - x - x - mm.

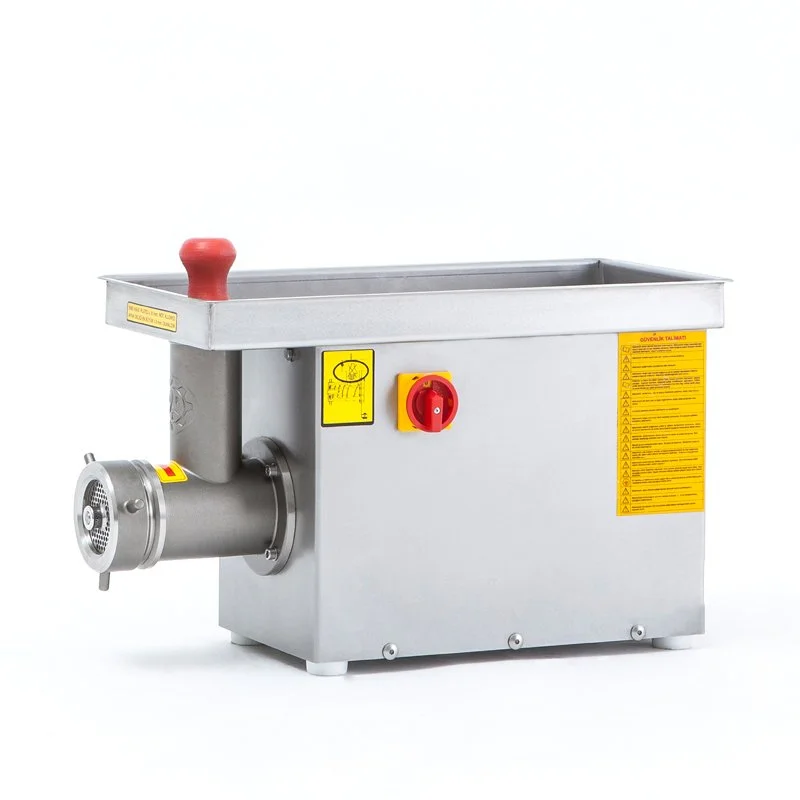

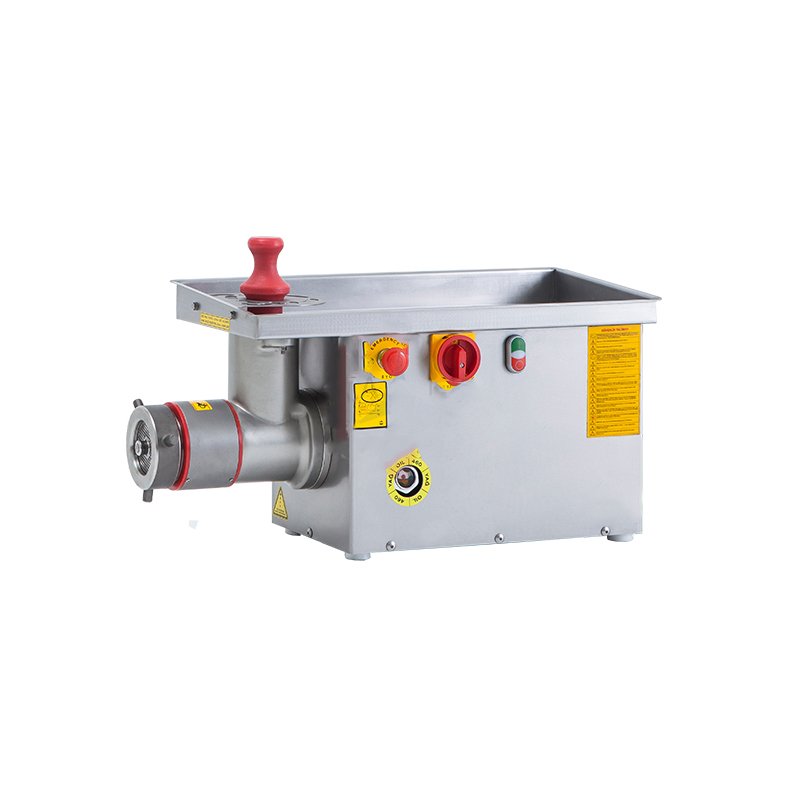

Ø82 Kıyma Makinası
-
Entirely manufactured AISI 304 stainless chrome body, head, bracelet, auger
The perfect combination of auger and body dimensions for high efficiency
Thanks to the removable groove-set, the machine is easy to clean. (Optional)
The pipe and frost in the cooling system are hidden.
The cooler is dismantled behind the machine. It can be detached and attached as the machine works independently when the cooler fails.
Cooler temperature control system is digital and can be easily adjusted Reducer system
1 Stainless mirror (Italian/Salvador)
1 Steel blade
1 polyethylene hammer
All models are manufactured as three-phase (Industrial Electricity). It can be manufactured as single phase (Home Electricity) according to the need.
Machines can work with just 1 plate and 1 blade.
Plates are made in İtaly (Salvador) and stainless, blades are stainless Steel and made in Germany (L&W).
-
Capacity 400 Kg / h.
Motor Power 1,5 kw.
Voltage 400 V / 50 Hz.
Plate Diameter 82 mm.
Cooler Optional
Groove (Cutting Block) Stationary
Sinew Separator No
Foot No
Weight 43,5 Kg.
Dimensions (L x W x H) 272 x 765 x 400 mm.
With Box Weight 51 Kg.
Box Dimensions (L x W x H) 320 x 830 x 380 mm.

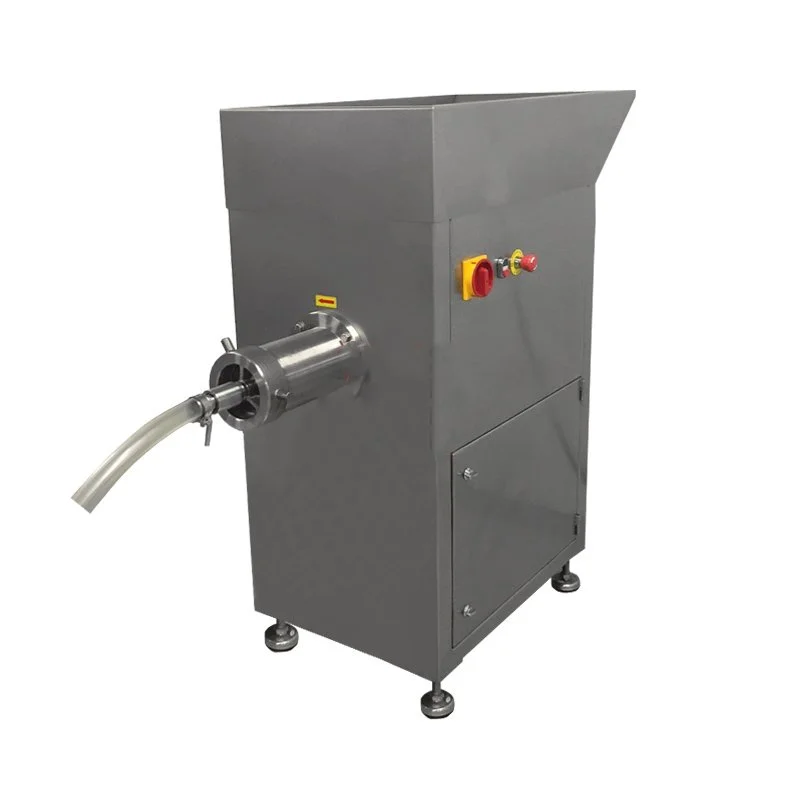

Ø130 Meat Grinder with Stand and Large Loading Hopper
-
Entirely manufactured AISI 304 stainless chrome body, head, bracelet, auger
The perfect combination of auger and body dimensions for high efficiency
With double stage opportunity to work
Thanks to the removable groove-set, the machine is easy to clean (Optional)
Cooling system (Optional)
Belt and Pulley System
It can be produced with reducer for in pieces frozen meat
Optionally, the nerve separator set can be added
It can work with 1 plate and 1 knife
1 Stainless mirror (Italian/Salvador)
1 Steel blade
Plates are made in İtaly (Salvador) and stainless, blades are stainless Steel and made in Germany (L&W).
-
Capacity 1000 Kg. / Hr.
Motor Power 5.5 kW.
Voltage 400 V / 50 Hz
Plate Diameter 130 mm.
Cooler Optional
Groove (Cutting Block) Stationary
Sinew Separator Optional
Weight 380 Kg.
Dimensions (L x W x H) 611 x 985 x 1297 mm.
With Box Weight --- Kg
Box Dimensions (L x W x H) - x - x - mm

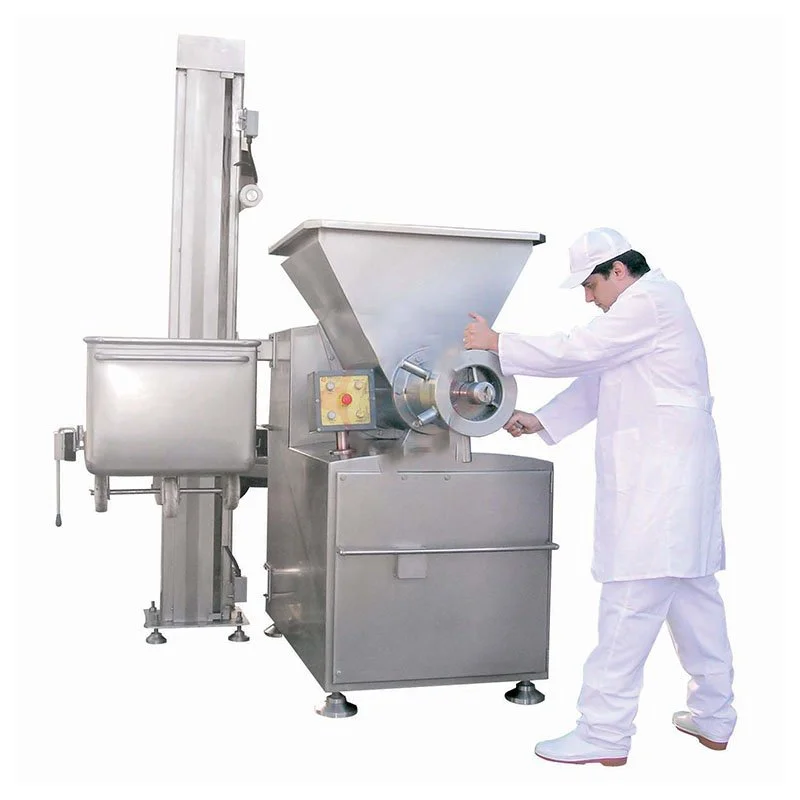

Meat Grinder For Frozen and Fresh Meat
Manufactured AISI 304 stainless chrome body, head, bracelet, auger
The perfect combination of auger and body dimensions for high efficiency
Lift (Optional)
IP65 waterproof buttons
200 lt standard meat trolley
You can easily separate the meat from the bone, nerve, etc. solid materials thanks to its nerve separation feature (Optional)
The meat grinder machine has the stainless steel transport trolley for auger, grinding plates, cutting knives and assembly equipments.
Includes: 1 x pre-cutter plate, 2 x double-sided blades, 1 x 10 mm perforated plate, 1 x 3 or 3.5 mm perforated plate, 1 x bearing collar.
Capacity 1500 / 4000 Kg
Motor Power 16 Kw
Voltage 400 V / 50 Hz
Plate Diameter 160 mm
Cooler Optional
Sinew Separator Optional
Weight 2100 Kg
Dimensions (L x W x H)2120 x 2010 x 28810 mm

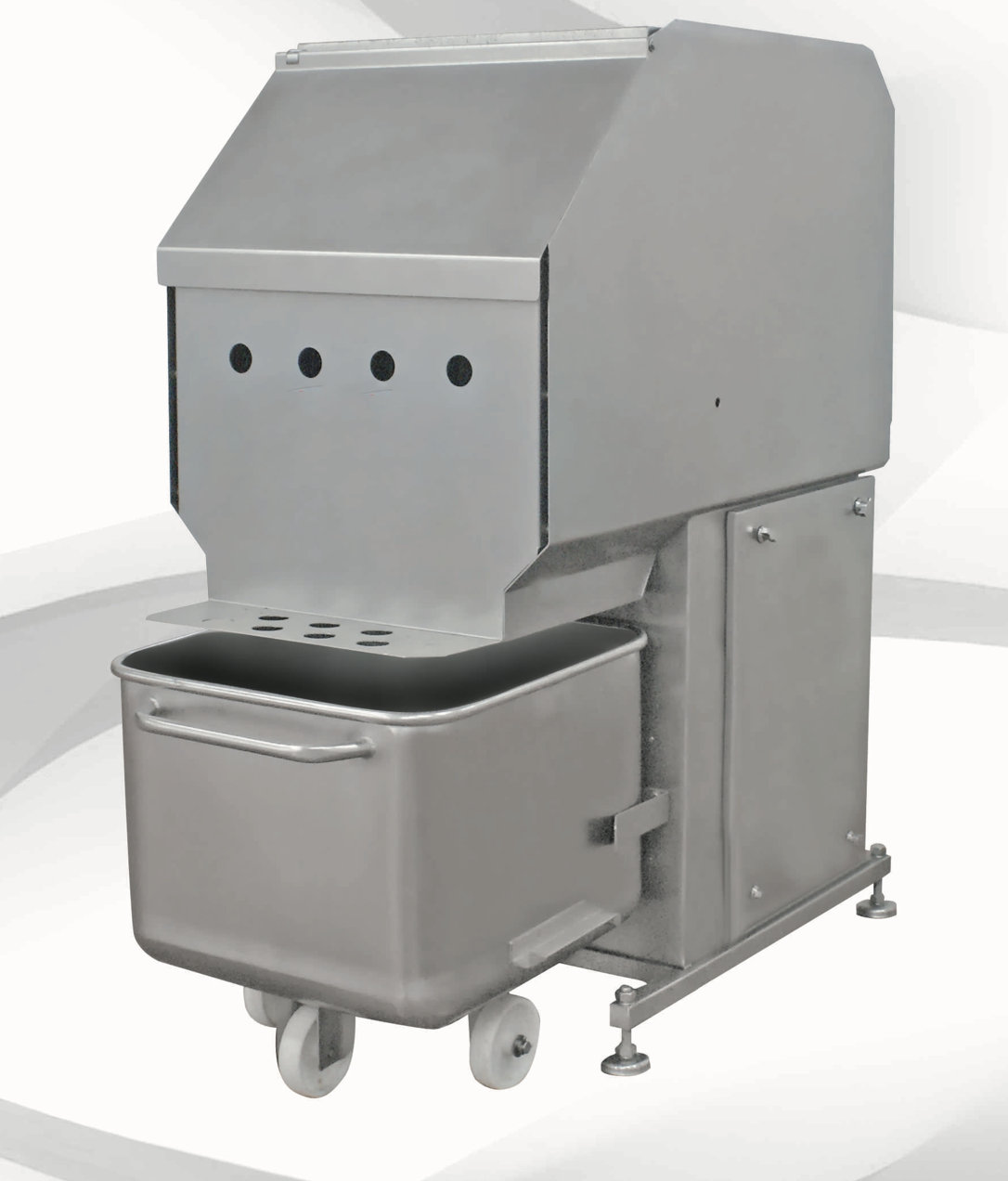

Frozen Meat Cutter Machine
• It is completely made of AISI 304 quality stainless
• Hydraulic cutter system
• Pneumatic elevator
• Safety switches
• Hygienic and easy to clean
• It is produced completely in accordance with CE standards
Capacity 1000 Kg / hour
Chopping Speed 28-32 minute
Power 2,2-4 kW
Voltage 400 V / 50 Hz
Dimensions. 800x1615x1675 mm
Weight 570 Kg
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
-
Motor ( IP 55) : 220 or 380 V Ampere : 10.8 A Fr equency: 50 Hz Fuse current: 16 A Motor power: 1.5 kW Blade speed : 15 m/s - Weight : 56 kg - Maximum cutting width: 173 mm Maximum cutting height: 215 mm * Lathe size: 655x390 mm2
-
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
Frozen and fresh meat with or without bone meat cutting saw is developed for small enterprises.
The body is completely made of 304 stainless steel.
The machine has electromagnetic motor brake and safety switch.
It has safety switch. Operator safety is considered at the highest level in the machine and saw blade stops simultaneously when you shut off machine thanks to the electromagnetic motor brake.
When the door is opened, it has a characteristic of stopping in less than 1 second.
It has easily adjustable product placing arm.
It is very easy and safe to use with its ergonomic design.
Emergency stop-start button used is IP 65 and it is protected against dust and water. Use steel gloves for your safety.
It can be produced as mono phase or triple phase as an option. All products are produced at CE standards.
* Specially designed meat placing roller is foldable when if not used.
- Blade cutting distance can be adjusted easily.

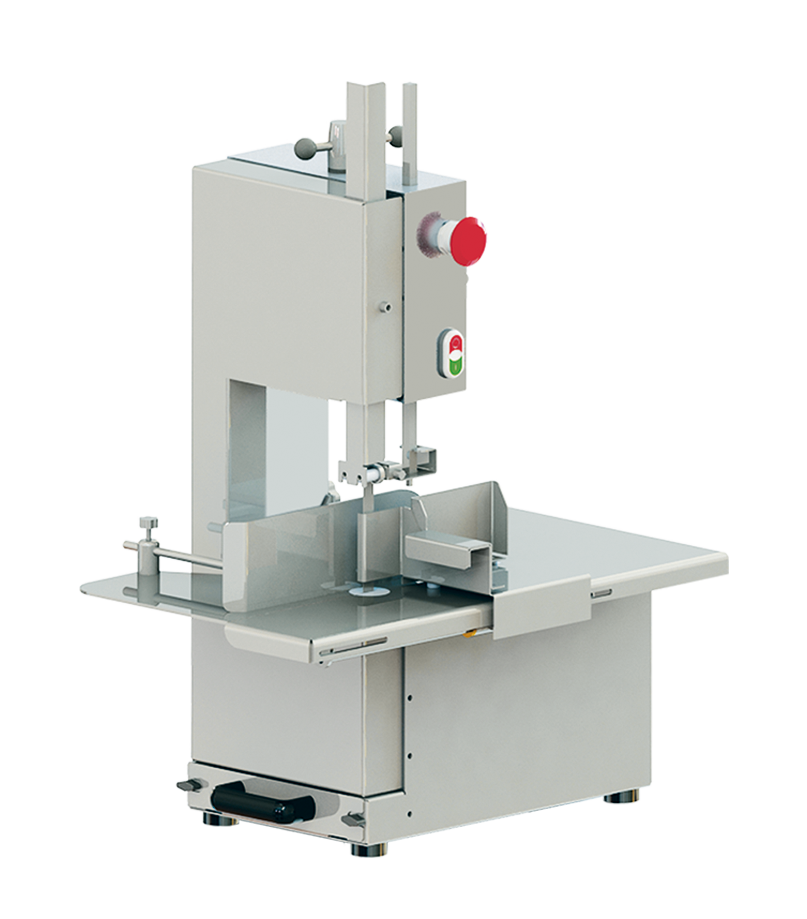

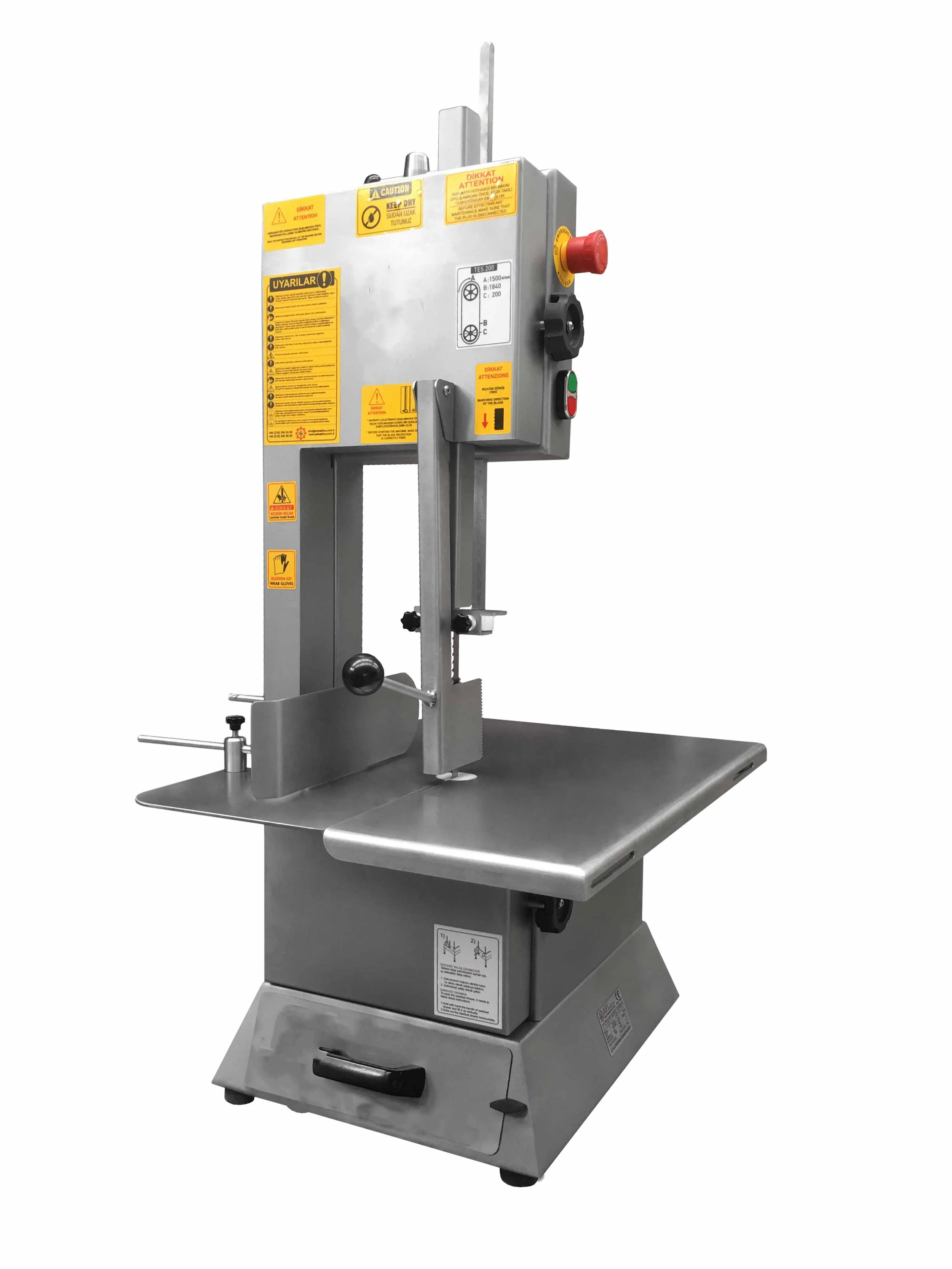

MODEL 1
MEAT & BONE BANDSAW
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
-
Engine voltage 230 / 400 / 480 V.
Current 3,8 A.
Frequency 50 / 50 / 60 Hz.
Engine power 1,5 kW.
Fuse current 16 A.
Blade rate 17 m/s.
Max. cutting width 250 mm.
Max. cutting height 315 mm.
Max. cutting depth 224 mm.
Dimensions of the bench (W x L) 630 x 465 mm.
Length of the bandsaw 1850 mm.
Diameter of pulley 200 mm.
Weight 65 kg.
Dimensions of the machine (W x L x H) 660 x 530 x 1100 mm.
-
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
It is completely made of AISI 304 quality stainless steel.
It has electromagnetic motor brake and safety switch.
Since the operator safety is considered at the highest level, the saw blade stops when the machine is turned off thanks to the electromagnetic motor brake.
It is manufactured as 380 volts as standard. It can be manufactured as 220 Volt optionally.
Emergency Stop and Start-Stop buttons are IP 65 and resistant to water and dust.
It is manufactured in accordance with CE standards.
Specially designed meat push slide has foldable feature if not used. (Optional)
Blade cutting distance can be adjusted easily.
With drawers meat shavings collecting chamber.

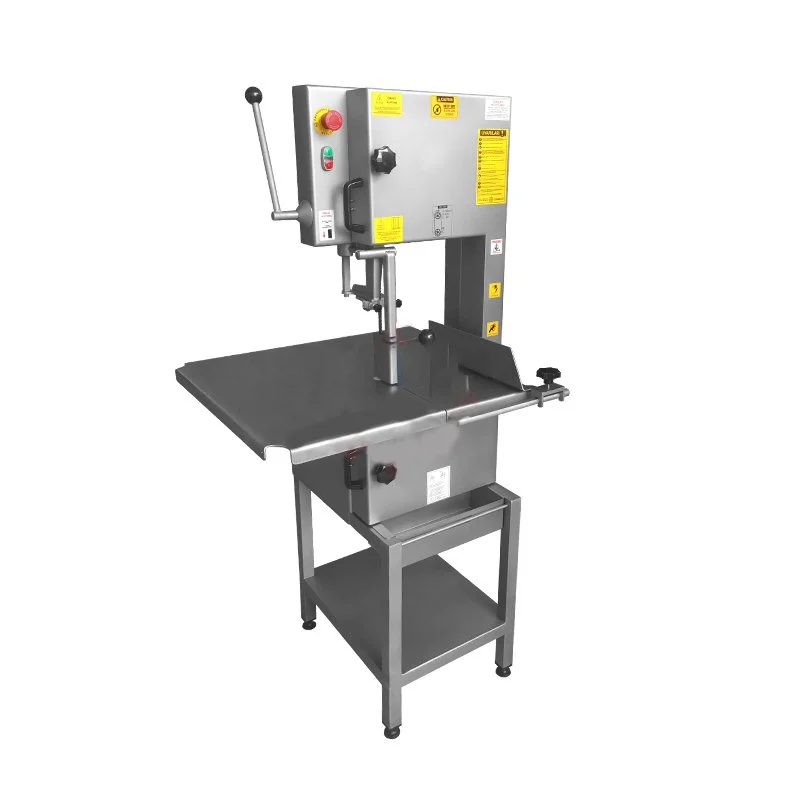

MODEL 2
MEAT & BONE BANDSAW
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
-
Engine voltage 230 / 400 / 480 V.
Current 6,4 / 3,7 / 3,7 A.
Frequency 50 / 50 / 60 Hz.
Engine power 1,5 - 1,8 kW.
Fuse current 16 A.
Blade rate 22 m/s.
Max. cutting width 281 mm.
Max. cutting height 315 mm.
Max. cutting depth 279 mm.
Dimensions of the bench (W x L) 638 x 672 mm.
Dimensions of the product discharge 285 x 400 mm.
Length of the bandsaw 2200 mm.
Diameter of pulley 300 mm.
Weight 145 kg.
Dimensions of the machine (W x L x H) 790 x 770 x 1665 mm.
-
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
It is completely made of AISI 304 quality stainless steel.
It has electromagnetic motor brake and safety switch.
Since the operator safety is considered at the highest level, the saw blade stops when the machine is turned off thanks to the electromagnetic motor brake.
It is manufactured as 380 volts as standard. It can be manufactured as 220 Volt optionally.
Emergency Stop and Start-Stop buttons are IP 65 and resistant to water and dust.
It is manufactured in accordance with CE standards.
Specially designed meat push slide has foldable feature if not used. (Optional)
Blade cutting distance can be adjusted easily.
With drawers meat shavings collecting chamber.

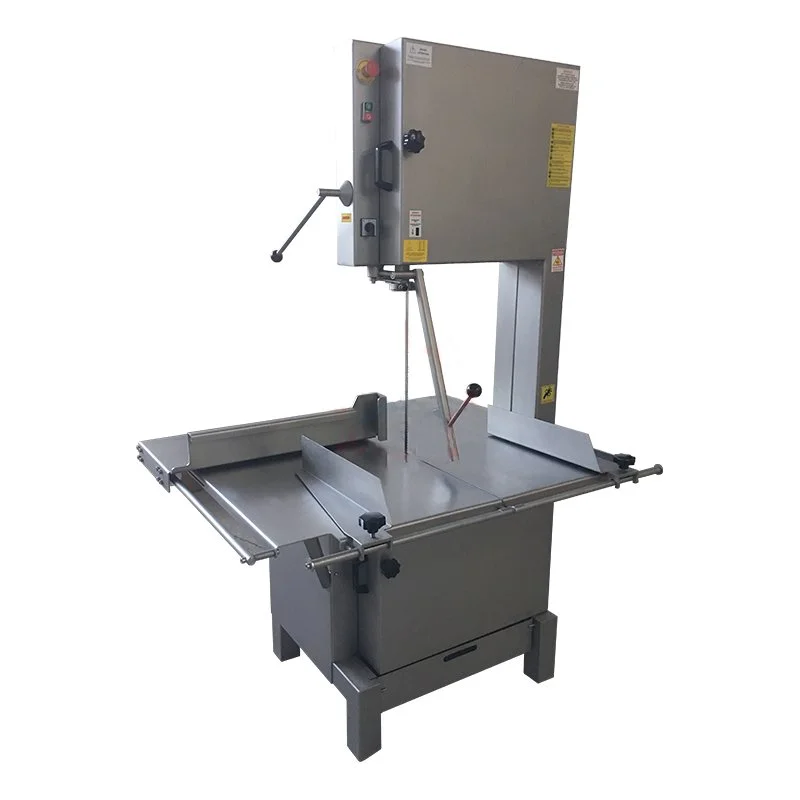

MODEL 3
MEAT & BONE BANDSAW
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
-
Engine voltage 230 / 400 / 480 V.
Current 11,6 / 6,7 / 6,7 A
Frequency 50 / 50 / 60 Hz.
Engine power 3 / 3 / 3,6 kW.
Fuse current 16 A.
Blade rate 39 m/s.
Max. cutting width 462 mm.
Max. cutting height 494 mm.
Max. cutting depth 425 mm.
Dimensions of the bench (W x L) 1316 x 1016 mm.
Dimensions of the product discharge 300 x 350 mm.
Length of the bandsaw 3765 mm.
Diameter of pulley 500 mm.
Weight 350 kg.
Dimensions of the machine (W x L x H) 1360 x 1020 x 2345 mm.
-
Meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-sized vegetables to the desired thickness for Butchers, Markets, Slaughterhouses and Meat Processing Plants.
It is completely made of AISI 304 quality stainless steel.
It has electromagnetic motor brake and safety switch.
Since the operator safety is considered at the highest level, the saw blade stops when the machine is turned off thanks to the electromagnetic motor brake.
It is manufactured as 380 volts as standard. It can be manufactured as 220 Volt optionally.
Emergency Stop and Start-Stop buttons are IP 65 and resistant to water and dust.
It is manufactured in accordance with CE standards.
Specially designed meat push slide has foldable feature if not used. (Optional)
Blade cutting distance can be adjusted easily.
With drawers meat shavings collecting chamber.
MODEL 3
MEAT & BONE BANDSAW
Hamburger Forming Machine
Hamburger Forming Machine
Hamburger forming machine is specially designed to be used in food factories, hotels, restaurants and meat processing industry to turn ground meat into burger type or hamburgers.
-
It is completely made of AISI 304 quality stainless
Hamburger and burger type form molds are made of polyethylene material. Molds can be made in different shapes upon request.
It has pneumatic and conveyor system
Hamburger discs consist of 4 parts. Each has a diameter of 100 mm. The maximum burger type thickness is 30 mm. 80 to 200 gr. It has the capacity to produce 2400 meatballs per hour
It is a single-phase servo motor
It is compatible to work with automatic and hydraulic filling machines
The hopper capacity is 40 liters
It is produced completely in accordance with CE standarts
-
Capacity 350 / 400 Kg / Sa
90Ø / 90 gr (15 pcs/min) 360 gr pcs/min
Power 2,5 kW
Volttage 400 V / 50 Hz
Dimensions (E x B x Y) ** mm
Weight **Kg
Hamburger Forming Machine
Model 1 : Cutter
Cutter which is designed for medium scale companies, used in meat processing factories whose capacities 1 or 5 ton per day.
-
It is completely made of AISI 304 quality stainless.
Can vacuum up to 65%.
Knives and bowl rpm is adjustable for 6 different step.
It has frequency converter and completely waterproof programmable touch panel
Bowl cover is opened and closed manually safety switch is under the bowl cover, If it is open, machine will be stop.
By frequency convertor, knives can turn opposite direction and can be used in mixing process.
There is a temperature sensor to measure the chamber temperature.
Volumetric control device can be added to give water to the product. (Optional)
-
Capacity 200 Lt / Kg
Voltage 400 V / 50 Hz
Power 16,1 kW
Chopping Speed 1500/3000 rpm
Bowl Speed 23-46 rpm
Blade Quantity 3 / 6
Dimensions 2180x2290x2640 mm
Weight 1950 Kg
Model 2 : Cutter
Cutters which is designed for big scale companies, used in meat processing factories whose capacities 5 or 10 ton per day.
-
It is completely made of AISI 304 quality stainless
Knives and bowl rpm is adjustable for 6 different step
Loader and unloader work with hydraulic system
It has frequency converter and completely waterproof programmable touch panel
There are two chamber covers. The safety switch is activated when the cover is lifted and the machine stops working
By frequency convertor, knives can turn opposite direction and can be used in mixing process
There is a temperature sensor to measure the chamber temperature
Volumetric control device can be added to give water to the product (Optional)
-
Capacity 300 Lt / Kg
Voltage 400 V / 50 Hz
Power 97 kW
Chopping Speed 200/3200 rpm
Bowl Speed 6-60 rpm
Blade Quantity 3 / 6
Dimensions 2675x2695x2646 mm
Weight 4000 Kg

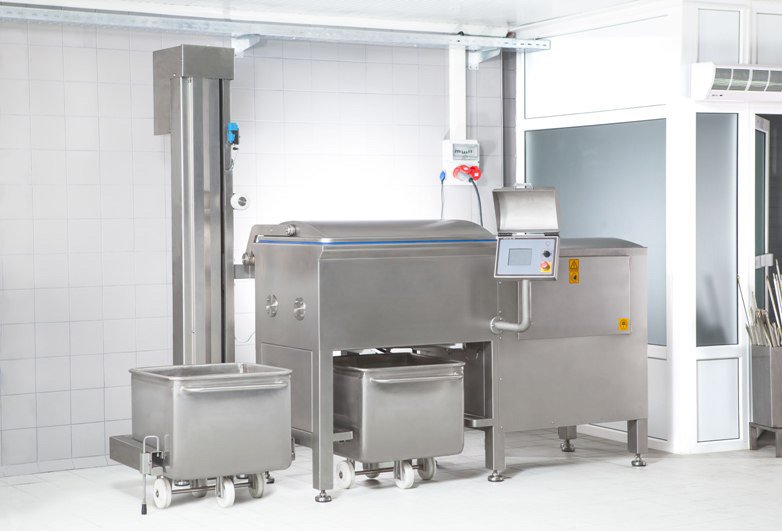

Mixing Machine
Used in sausage, spiced sausage, salami, doner kebab, meat ball production and in the meat processing industry. Ensures that the product and spices and other ingredients are mixed homogneously thanks to the interlacing pallets within the reservoir. The product reaches the desired consistency within a maximum of 10-15 minutes.
Vacuuming, heating and cooling system could be added optionally at larger capacities.
-
It is completely made of AISI 304 quality stainless
Has strong motor and gearbox
Elevator (Optional)
Safety switches
Hygienic and easy to clean
It is produced completely in accordance with CE standarts
Industrial mixing machine models have a digital control system. In order for the mixture to be of the desired quality, the duration and direction of the mixing process can be adjustable. It is possible to install the program.
Except for the ability to add water and sauce can be optionally added to industrial mixing machines. The desired amount can be entered from the control panel.
Models have hydraulic cover system. Air pistons that are difficult to control and dangerous are not used on the top cover. Pneumatic piston is preferred in front discharge models. All models are equipped 200 lt of meat carrier standartly. Waterproof buttons are used on the control panel.
Unloading system can be located underside or front of machine.
Can be designed new palet system for specify of mixing process.
Vacuum feature can be added Adjustable rpm by means of frequency convertor. Heating or cooling system by double hull.
-
Capacity 600-800 Kg
Voltage 380 V 50/60 Hz
Power 10-16 kW
Evacuation Bottom / Front
Dimensions
Vacuum Not Available

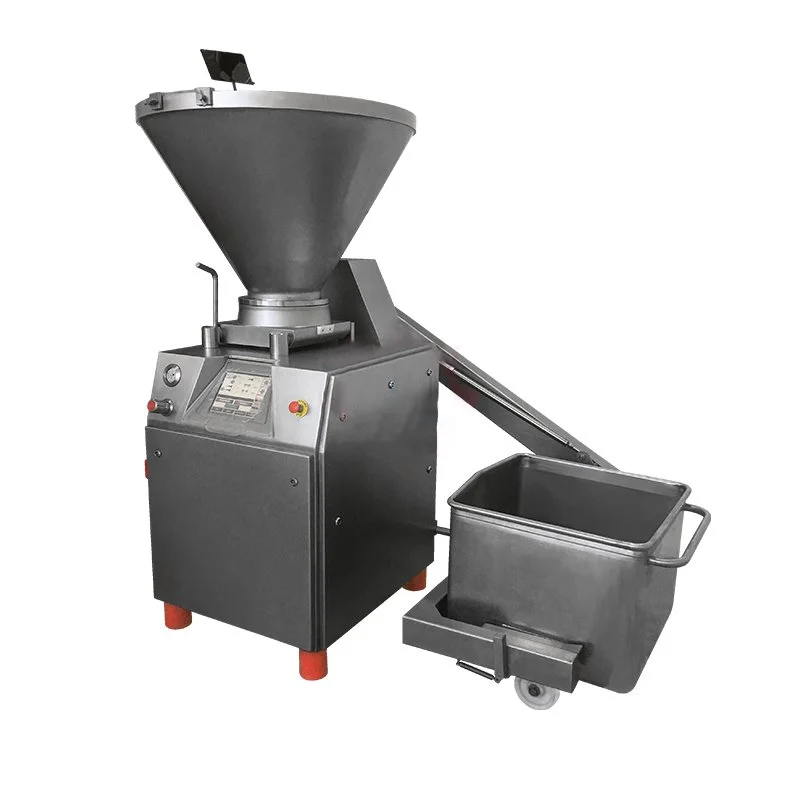

Automatic Filling Machine
Automatic Filling Machine
It is used in the production of sausage, salami and sausage. It can be filled in the desired weight and automatically. Weight sensitivity is made with a pallet system. There are 6 pallets. Thanks to the vacuum system, air is prevented from remaining in the product and it is ensured that the product is fully filled. It can also be used for filling products such as doner kabab and canned food.
-
It has a communication connection so that it can work together with the automatic clipping machine.
It is completely made of AISI 304 quality stainless.
It has servo motor.
It has a pallet portioning system.
Elevator (optional)
Apparatus for portioning sausages can be added. (optional)
The feeding hopper is 250 Liters.
It is produced completely in accordance with CE standarts.
In automatic filling machines, loading is by elevator. It has a 300 liter hopper. It works silently and without vibration. The vacuum system prevents air bubbles that may occur between the product and the pallets, thus increasing the gram sensitivity of the product. Portion and gram precision of the product is highlighted by using servo motor. It can work synchronously with optionally added clipper (automatic wire throwing) and similar equipment. Communication is easily achieved with both machines.
The scraper in the feed hopper prevents the product from sticking and increases the flow rate. The fact that the scraper is easy to disassemble and assemble has brought cleanliness and hygiene to the fore. The movement of the hopper is transferred through the rotor, thanks to the special gear.
Thanks to the vacuum system, the flow of the product passing through the feeding hopper to the pool becomes easier. Evacuating the air in the pool system and filling the product in an airless environment highlights the importance of the vacuum system. Thanks to the filters in the vacuum chamber, the product is stored without going to the vacuum pump.
The arrangement of rotor and pallets is as shown in the figure. Pool, rotor the fact that the pallets and pallets are made of AISI 304 stainless material ensures that the machine is cleaned and hygienic.
-
Capacity 2000-4000 kg / h
25 gr 400 servings / min.
50 gr 350 servings / min.
100 gr 250 servings / min.
Voltage 400 V / 50 Hz
Engine Power 10 kW - 8,3 kW
Weight 1100 kg
Dimensions of the Machine (W x L x H) **
Automatic Filling Machine with Vacuum

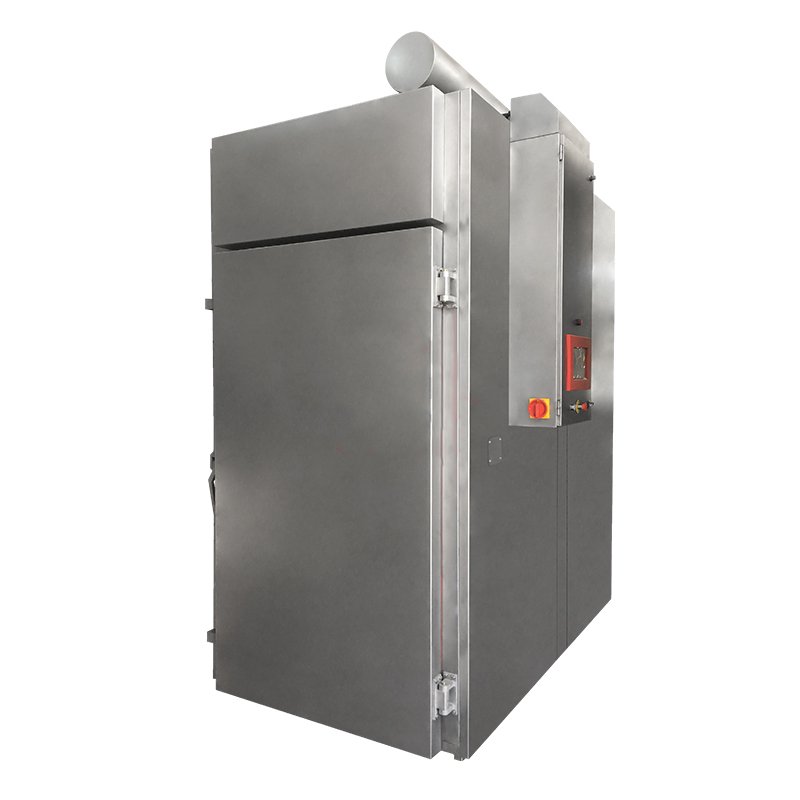

Used in sausage, spiced sausage and salami production and to smoke fish. Capable of cooking, boiling, frying and smoking The heating system could be steam, electric, with boiler (natural gas or diesel fuel as desired. Easy to use and program thanks to the full automatic electronic board. Equipped with a thermometer to automatically read and transmit the wet, dry and humid temperatures. Comes with a printer outlet for quality control purposes. Air-condition system could be added optionally.
-
Body, chassis and steam heating channels are made of AISI 304 quality stainless steel
Doors are manufactured as manual opening
Oven inlet sizes conform to international norms
Ramp channel system that facilitates the entrance and exit of the oven trolleys
In-furnace protective barriers
Convenient and easy to clean
Possibility to create 999 process consisting of 15 steps
It is produced in accordance with CE standards
Isolation is maintained according to applicable standarts in order to minimize heat loss inside the oven and to avoid fall of temperature. Door hinges are resistant to oven inside ambient conditions. (Heat, Steam, Humidity) The Doors optionally are opened and closed automatically.
The purpose of users, the heating systems are designed as;
• Steam Driven
• Boiler Driven
• Resistance - Driven ( Electrical )
• Cold Air System
Furnaces are divided into two groups, one after the other, as closed tunnel and open tunnel. In open tunnels, entrances and exits can be made through separate doors, and in closed tunnels, loading and unloading can be done from a single door. We can classify open and closed tunnel kilns as single trolley and double trolley.
-
Capacity 200 Lt
Voltage 400 V / 50 Hz
Power 5 kW
Number of Trolleys 1
Heating System Steam / Electric
Weight -
Dimensions of the Machine (W x L x H) -
